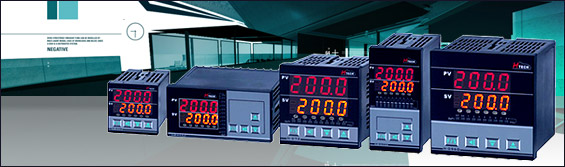

 微電腦PID溫度控制器 / Microprocessor PID Temperature Controller

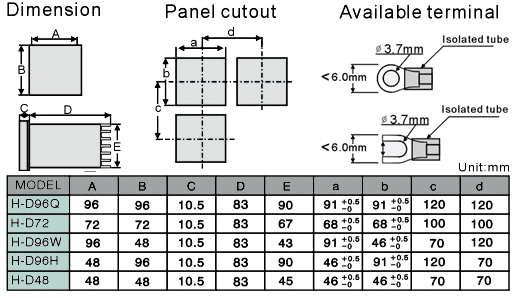

Dimensions & Panel Cutout 外型與開孔尺寸

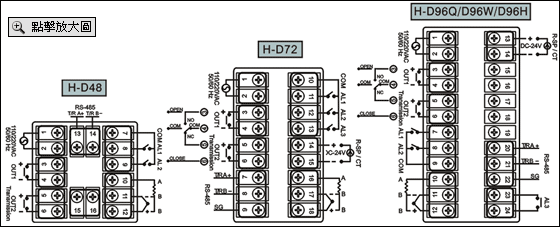

Terminal Connections 配線圖

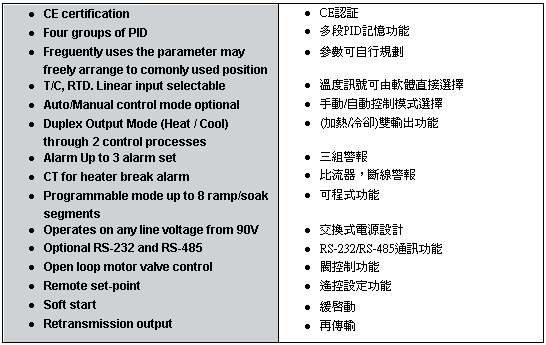

Specifications 規格特點
|
|
Type of Input |
|
RTD (Pt100,JPt100) |
Linear(1~5V, 4~20mA) |
| Input Sampling Time |
500 ms |
|
Indication |
|
4-digit |
| Constant Value Storage System |
Non-volatile memory (EEPROM) |
| Control Mode |
|
0.0 ~ 3000 |
| Integral Time (I) |
0 ~ 3600 |
| Derivative Time (D) |
0 ~ 900 |
| Cycle Time |
0 ~ 150 |
| Dead Band |
0.0 ~ 200.0 |
| Control Output |
Relay Output |
Contact, SPDT 3A/240V AC |
| Voltage Output |
Voltage Pulse |
| Linear Output |
4 ~ 20mA, 1 ~ 5V |
| Motor Control Output |
Open loop motor valve |
| Alarm |
Channel |
3 Channels (Optional) |
| Communication |
Type of Communication |
RS-232, RS-485 Modbus RTU protocol |
| General Specifications |
Power Supply Voltage & Frequency |
90 ~ 260V, 24V AC 50/60 Hz; 24V DC |
| Power Consumption |
< 3.5VA |
| Ambient Temperature |
-10 oC ~ 55 oC |
| Ambient Humidity |
0 ~ 80% RH |

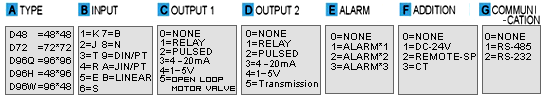

Ordering code 訂貨規格
|
